Digital Mapcopier

৳ 1,380,000.00

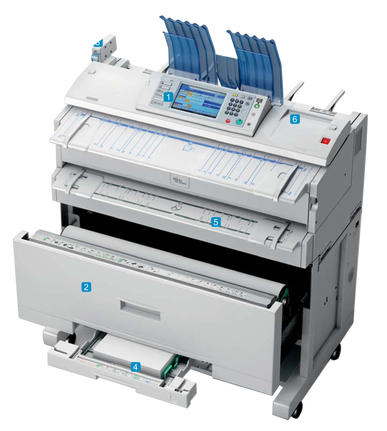

The Ricoh MPW2401 & Ricoh MPW3601 provide the dream combination: affordable wide-format document production in a compact footprint. You can securely copy, scan, distribute and archive with one surprisingly compact unit. With their top-of-the-range optional colour scanner and speed of 6.4 A1 pages per minute (Ricoh MPW3601), these devices offer productivity improvements for the busy office. You can process a variety of paper sizes from A4 up to A0: opt for the two roll configuration or the additional 250-sheet paper cassette (up to A3).

  • Extremely compact design.
  • Optional colour scanner with variety of standard features.
  • Very easy to use – large LCD touch-panel.
  • Latest security features fully incorporated.
  • Superb productivity: 4.4/6.4 ppm (A1) and 2.4/3.4 ppm (A0).
Category: Tag:

Description

GENERAL
Copying process
Copy speed

Resolution
Multiple copy
Warm up time
First output speed
Reduction/enlargement
Zoom
Memory
Paper input capacity


Paper output capacity

Roll Paper size

Paper weight
Dimensions (W x D x H)
Weight
Power source:
Power consumption

Electro-photographic printing
MP W2401: 2.4/4.4 copies per minute (A0-A1)
MP W3601: 3.4/6.4 copies per minute (A0- A1)​
Maximum: 600 dpi
Up to 99 (ten key input)
​Less than 2 minutes
Less than 21 seconds (A1)
4R/4E
25 – 400% (in 0.1% steps)
1,024 MB + 160 GB Hard Disk Drive
1-sheet bypass tray
2 Roll Feeder (option)
250-sheet paper cassette (option)​
​Top: 50 sheets A1 (plain paper)
Bottom: 40 sheets A0 (plain paper)
Minimum: 210 x 210 mm
Maximum: 914 x 15,000 mm
​64 – 105 g/m²
1,080 x 637 x 580 mm
107 kg
​220 – 240 V, 50/60 Hz
1400 W
PRINTER TYPE W3601 (OPTION)

Controller type
Print speed

​Printer resolution
Print size

Network protocol
Supported file formats

Supported environments


​Interface

Embedded
MP W2401: 2.4/4.4 prints per minute (A0/A1)
MP W3601: 3.4/6.4 prints per minute (A0/A1)
Maximum: 600 dpi
Minimum: 210 x 257 mm
Maximum: 914 x 15,000 mm
TCP/IP, IPX/SPX (Auto switching available)
​HPGL, HPGL2 (HPRTL), TIFF (CALS),
Adobe® PostScript® 3TM
Windows® 2000/XP/Vista/7/Server 2003/
Server 2008,
Mac OS X (OS X10.2 or later)​
Standard:
Ethernet 10 base-T/100 base-TX/USB 2.0
Option:
Wireless LAN (IEEE 802.11b)
Gigabit Ethernet
SCANNER TYPE W3601 (OPTION)

Scan speed

Resolution

Original size
Output formats
Bundled drivers
Scan to e-mail
Destination addresses
Stored destination
addresses
Address book

Scan to folder
Destination
​Monochrome: 80 mm per second (600 dpi)
Colour: 26.7 mm per second (600 dpi)
​Scan to email / folder (150 – 600 dpi)
TWAIN (150 – 1,200 dpi)
Maximum 914 x 15,000 mm
PDF/TIFF/JPEG
Network TWAIN
SMTP, POP3
Maximum 100 per job (Direct Input / via LDAP)
Maximum 500 per job

Via LDAP or locally on Hard Disk Drive
(max 2000 addresses)​
Via SMB, FTP or NCP protocol
Maximum 50 folders per job

OTHER OPTIONS

​2 Roll Feeder, 250-sheet paper cassette (up to A3), Table, Originals hanger, Roll
holder, Rear stacker, File Format Converter, Browser Unit, USB2.0/SD slot,
Wireless LAN
​For availability of models, optional apparatus and software,
please contact your local Ricoh representative.

All brand and/or product names are trademarks of their respective owners.
Specifications are subject to change without prior notice.
